Piloting automated tests executions from Squash TM


Squash TM test case automation

Note

This page describes the common operations to all supported test frameworks in this version. You can access the automation specifics for each technology directly with the following links :

Without using the Squash automation workflow

For a test case to be usable by the Squash Orchestrator, its Automation panel in the Information tab of the test case page must be correctly filled :

../_images/tc-automated-space.png

  • Automated test technology : A dropdown list allowing you to choose the technology used for the execution of a test case. In this version, only Robot Framework, Junit, Cucumber, Cypress and SoapUi are functioning.

  • Source code repository URL : The address of the source code repository where the project is located, as referenced in the Source code management servers area of the Administration.

  • Automated test reference : This is the location of the automated test within the project. This reference must follow the format specific to the test technology being used (see here).

Using the Squash automation workflow

Regular test case

For a test case to be usable by the Squash Orchestrator, it must be automated in the Automation Workspace by filling three columns :

../_images/autom-workspace-columns.png

  • Auto. test tech. : A dropdown list allowing you to choose the technology used for the execution of a test case. In this version, only Robot Framework and Junit are functioning.

  • Scm URL : The address of the source code repository where the project is located.

  • Auto. test ref. : This is the location of the automated test within the project. This reference must follow the format specific to the test technology used (see here).

BDD or Gherkin test case

The information of the Automation panel is automatically filled during the transmission of a BDD or Gherkin script to a remote source code repository hosting service. It can also be modified by the user at any moment.

Squash TM parameters exploitation

When a Squash TM execution plan is launched (through an EPAC or directly from the campaign workspace), Squash TM will transmit various information on ITPI that can be exploited by a Cucumber, Cypress, or Robot Framework test case. Details of this functionality can be found on the corresponding used technology section

Automation frameworks specifics

Automation with Cucumber

1. Test reference

Note

In this version of Squash AUTOM, it is not possible to select a specific scenario in a .feature file containing several ones : every scenario in the file are therefore executed together. The result of each executed Squash TM test case is calculated by taking into account the individual results of each scenario included in the bound file :

  • If at least one scenario has an Error status (in case of a technical issue), the status of the execution will be Blocked.

  • If at least one scenario fails functionally and none of the other has an Error status, the status of the execution will be Failed.

  • If all scenarios succeed, the status of the execution will be Success.

In order to bind a Squash TM test case to a Cucumber automated test, the content of the Automated test reference field of the Automation panel of a test case must have the following format :

[1] / [2]

With :

  • [1] : Name of the project on the source code repository.

  • [2] : Path and name of the Cucumber test file, from the root of the project (with the .feature extension).

2. Nature of the exploitable Squash TM parameters

Squash AUTOM and Squash DEVOPS are able to use the name of a Squash TM dataset as a tag value to use for the execution of a specific subset of a Cucumber feature.

Both Community and Premium versions can use dataset names.

3. Squash TM parameters usage

When executing a Squash TM automated test case with Cucumber, it is possible to exploit the Squash TM dataset name in order to execute a specific dataset of a Cucumber scenario.

In order to achieve this, you’ll have to follow these steps :

  • Fill the datasets in the Parameters tab of the test case in Squash TM.

  • Create in a Cucumber scenario as many example table as there are dataset in Squash TM test case. Annotate them with a tag corresponding to the name of a Squash TM dataset.

  • Create one line of elements in each example table to set scenario’s parameters values for the dataset.

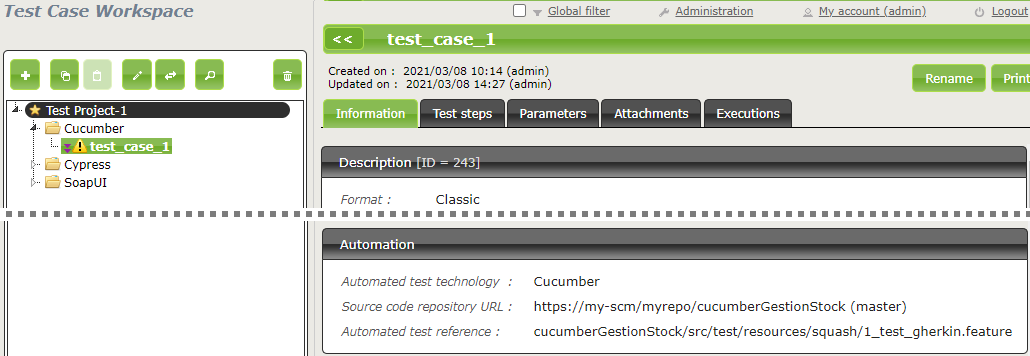

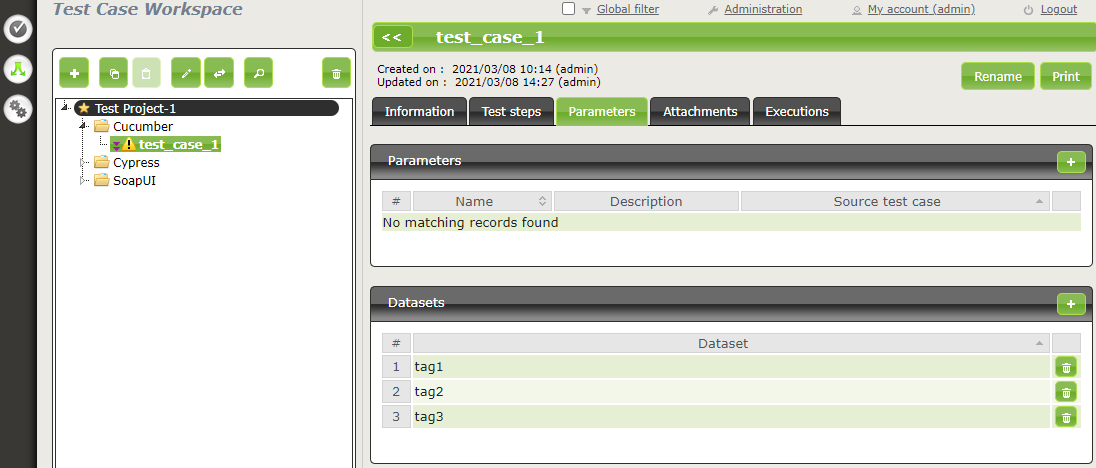

Below is an example of a Cucumber test file and the corresponding Squash TM test case automation :

../_images/cucumber-test-with-tags-1.png
../_images/cucumber-test-with-tags-2.png
../_images/cucumber-test-with-tags-3.png

Automation with Cypress

1. Test reference

Note

In this version of Squash AUTOM, it is not possible to select a specific scenario in a .spec.js file containing several ones : every scenario in the file are therefore executed together. The result of each executed Squash TM test case is calculated by taking into account the individual results of each scenario included in the bound file :

  • If at least one scenario has an Error status (in case of a technical issue), the status of the execution will be Blocked.

  • If at least one scenario fails functionally and none of the other has an Error status, the status of the execution will be Failed.

  • If all scenarios succeed, the status of the execution will be Success.

In order to bind a Squash TM test case to a Cypress automated test, the content of the Automated test reference field of the Automation panel of a test case must have the following format :

[1] / [2]

With :

  • [1] : Name of the project on the source code repository.

  • [2] : Path and name of the Cypress test file, from the root of the project (with the .spec.js extension).

2. Nature of the exploitable Squash TM parameters

The exploitable Squash TM parameters in a Cypress script will differ depending on whether you’re using the Community or Premium version of Squash DEVOPS.

Here is a table showing the exploitable parameters :

Nature

Key

Community

Premium

Name of the dataset

DSNAME

 ../_images/ok.jpg ../_images/ok.jpg

Dataset parameter

DS_[name]

 ../_images/ok.jpg ../_images/ok.jpg

Test case reference

TC_REF

 ../_images/ok.jpg ../_images/ok.jpg

Test case CUF

TC_CUF_[code]

 ../_images/ok.jpg ../_images/ok.jpg

Iteration CUF

IT_CUF_[code]

 ../_images/ko.jpg ../_images/ok.jpg

Campaign CUF

CPG_CUF_[code]

 ../_images/ko.jpg ../_images/ok.jpg

Test suite CUF

TS_CUF_[code]

 ../_images/ko.jpg ../_images/ok.jpg

Legend :

  • CUF : Custom Field

  • [code] : Value of a CUF’s “Code” field

  • [name] : Parameter name as filled in Squash TM

3. Squash TM parameters usage

When executing a Squash TM automated test case with Cypress, it is possible to exploit the Squash TM parameters inside the test.

In order to achieve this, you’ll have to follow these steps :

  • Create custom fields in Squash TM and bind them to the project bearing the test plan to execute.

  • Make sure that the code fields of the parameters correspond to the names of the existing environment variables present in the Cypress script.

Note

Squash TM adds a prefix to the code of the transmitted custom field. Make sure to take it into account. Please refer to the Squash TM documentation for more information.

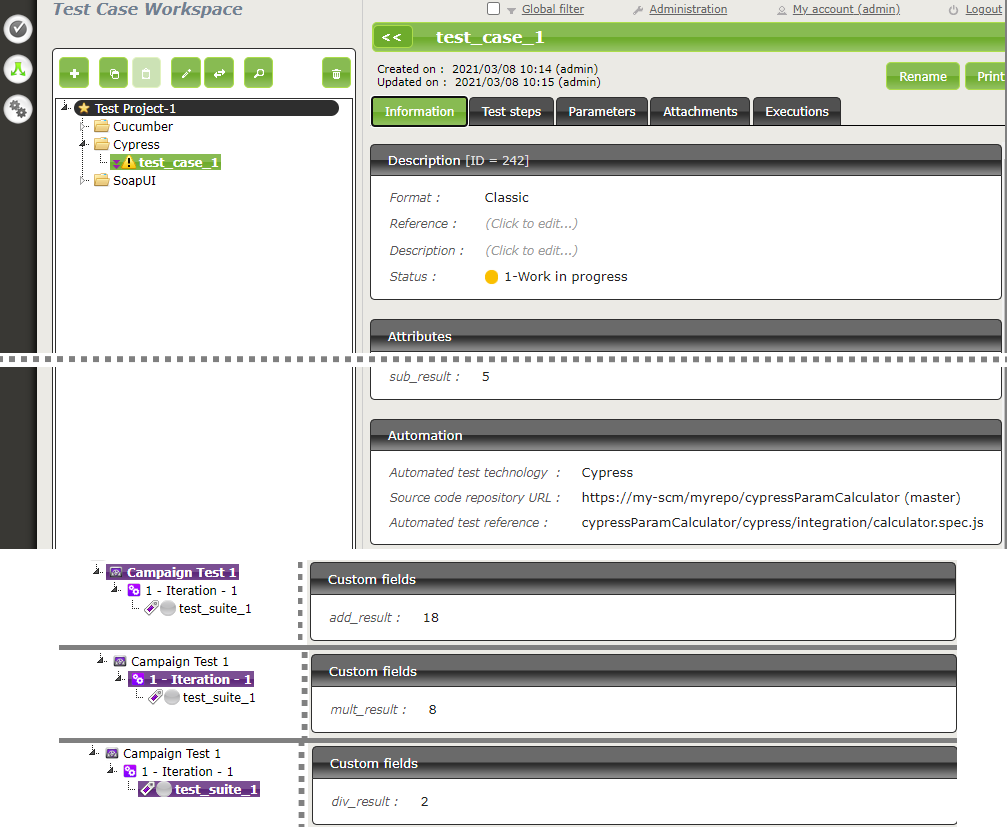

Below is an example of a Cypress test file and the corresponding Squash TM test case automation :

../_images/cypress-test-with-params-1.png
../_images/cypress-test-with-params-2.png

Automation with JUnit

Test reference

In order to bind a Squash TM test case to a JUnit automated test, the content of the Automated test reference field of the Automation panel of a test case must have the following format :

[1] / [2] # [3]

With :

  • [1] : Name of the project on the source code repository.

  • [2] : Qualified name of the test class.

  • [3] : Name of the method to test in the test class.

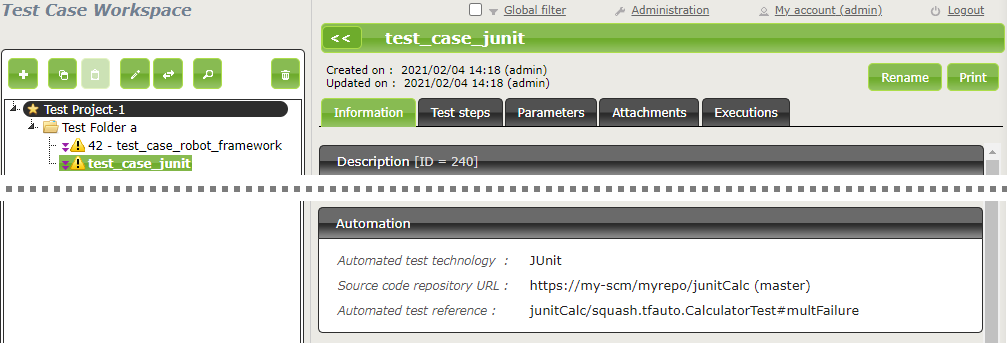

Below is an example of a test class and the corresponding Squash TM test case automation :

../_images/junit-test-with-param-1.png
../_images/junit-test-with-param-2.png

Automation with Robot Framework

1. Test reference

In order to bind a Squash TM test case to a Robot Framework automated test, the content of the Automated test reference field of the Automation panel of a test case must have the following format :

[1] / [2] # [3]

With :

  • [1] : Name of the project on the source code repository.

  • [2] : Path and name of the Robot Framework test, from the root of the project (with the .robot extension).

  • [3] : Name of the test case to execute in the .robot file.

2. Nature of the exploitable Squash TM parameters

The exploitable Squash TM parameters in a Robot Framework script will differ depending on whether you’re using the Community or Premium version of Squash DEVOPS.

Here is a table showing the exploitable parameters :

Nature

Key

Community

Premium

Name of the dataset

DSNAME

 ../_images/ok.jpg ../_images/ok.jpg

Dataset parameter

DS_[name]

 ../_images/ok.jpg ../_images/ok.jpg

Test case reference

TC_REF

 ../_images/ok.jpg ../_images/ok.jpg

Test case CUF

TC_CUF_[code]

 ../_images/ok.jpg ../_images/ok.jpg

Iteration CUF

IT_CUF_[code]

 ../_images/ko.jpg ../_images/ok.jpg

Campaign CUF

CPG_CUF_[code]

 ../_images/ko.jpg ../_images/ok.jpg

Test suite CUF

TS_CUF_[code]

 ../_images/ko.jpg ../_images/ok.jpg

Legend :

  • CUF : Custom Field

  • [code] : Value of a CUF’s “Code” field

  • [name] : Parameter name as filled in Squash TM

3. Squash TM parameters usage

When executing a Squash TM automated test case with Robot Framework, it is possible to exploit the Squash TM parameters inside the test.

In order to achieve this, you’ll have to follow these steps :

  • Create custom fields in Squash TM and bind them to the project bearing the test plan to execute.

  • Install the squash-tf-services python library on the environment where the Robot Framework execution takes place. It is accessible through the pip package management and can be installed by executing the following command line :

python -m pip install squash-tf-services

  • Import the library inside the .robot file in the Settings section :

Library squash_tf.TFParamService

  • You can then retrieve the value of a Squash TM parameter by calling the following keyword :

Get Param <parameter key>

Below is an example of a Robot Framework test file and the corresponding Squash TM test case automation :

../_images/robot-test-with-param-1.png
../_images/robot-test-with-param-2.png

Automation with SoapUI

Test reference

In order to bind a Squash TM test case to a SoapUI automated test, the content of the Automated test reference field of the Automation panel of a test case must have the following format :

[1] / [2] # [3] # [4]

With :

  • [1] : Name of the project on the source code repository.

  • [2] : Path and name of the SoapUI test file, from the root of the project (with the .xml extension).

  • [3] : Name of the TestSuite containing the test case.

  • [4] : Name of the test case to execute.

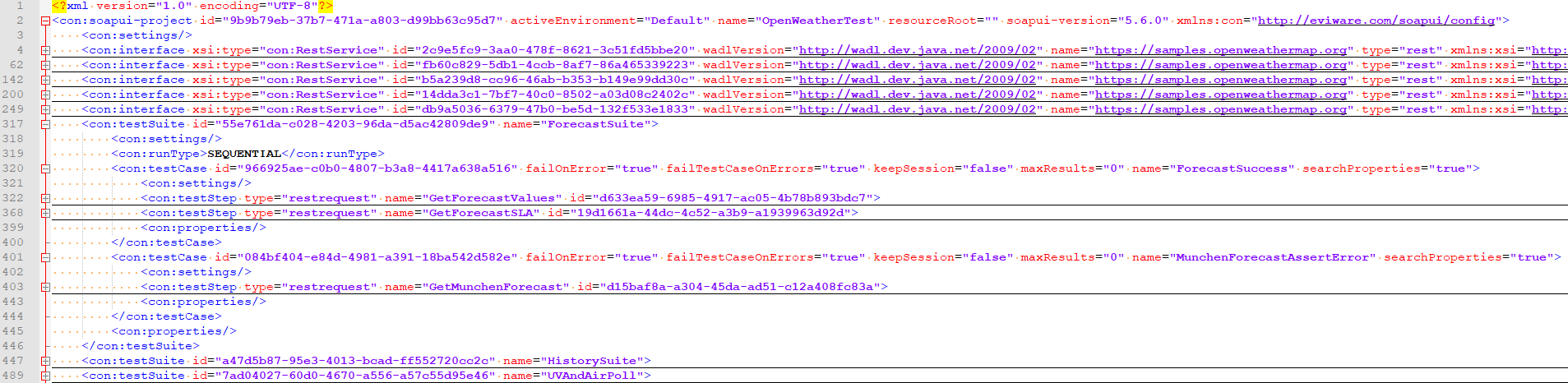

Below is an example of a SoapUI test file and the corresponding Squash TM test case automation :

../_images/soapui-test-1.png
../_images/soapui-test-2.png

Test plan execution from Squash TM

Squash Orchestrator server declaration

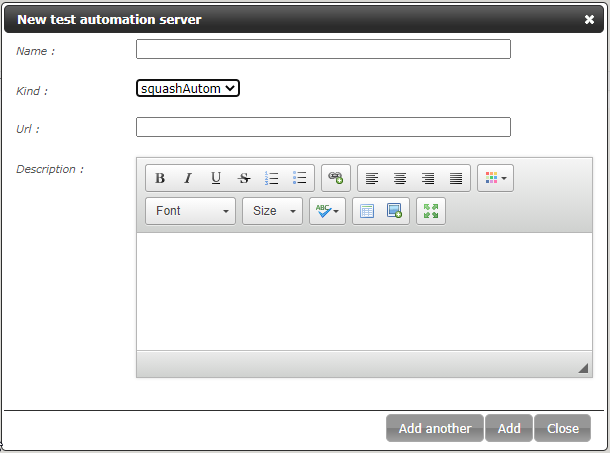

In order to manually launch an execution plan from Squash TM, the Squash Orchestrator server that will execute the automated tests in the suitable environments has to be declared. It is done in the Automation servers space of the Administration :

../_images/automation_servers_declaration.png

  • Name : The name of server, as it will appear in the Test Case workspace.

  • Type : Select squashAutom in the dropdown list.

  • Url : The address of the Squash Orchestrator Receptionist.

Warning

The Squash Orchestrator event bus service must be accessible by the same url as the Receptionnist, on port 38368.

Once the server is created, you can set an authentication token.

../_images/token-en.png

Note

A token is mandatory for the execution of automated tests from Squash TM. If the automation server does not require authentication token, you still have to set some value in Squash TM.

Automated suite execution

Steps to run an automated test plan in Squash TM are the usual ones:

  • Get to the execution plan of the selected Iteration or Test Suite.

  • Run the test using one of the button on the screen below :

    ../_images/test-plan-en.png

  • An Overview of automated test executions popup shows up.

Note

The execution overview popup contains a new section displaying the ongoing executions performed by the Squash Orchestrator. However, the state of the executions are not updated once launched in the current version.


Results publication after a Squash TM test plan execution

Independently from the means used to trigger a test plan execution (from Squash TM or a Jenkins pipeline), the kind of results published in Squash TM at the end of the execution of a test plan will differ depending on your using a Squash AUTOM Community or Squash AUTOM Premium licence.

Squash AUTOM Community

After the execution of a Squash TM test plan (iteration or test suite), the following information is updated :

  • ITPIs status update.

  • Automated suite status update.

  • The Allure type report containing all the results from the executed tests.

  • The various ITPIs execution reports are accessible from the Automated Suites tab of the iteration or test suite :

../_images/automated-suite-tab.png

Note

All the results from the automated suite are compiled in an Allure type report, available in the list of reports as a .tar archive.

However, in version 1.0.0.alpha2, the Robot Framework test results can’t be included in this report. If the automated suite contains only Robot Framework tests, the archive will be generated with an empty report.

For more information on the means to exploit and customize the Allure report, please refer to the Allure documentation.

This, however, doesn’t happen :

  • Creation of a new execution for each executed ITPI.

Squash AUTOM Premium

If you are using the Squash AUTOM Premium components, you have access to two types of results publication :

  • Light (default value).

  • Full.

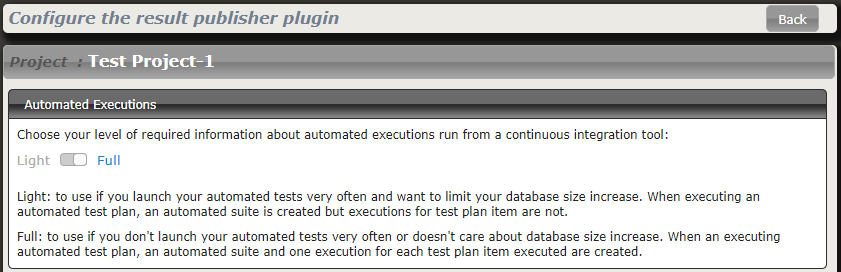

The choice of publication type is operated on a project basis by accessing the configuration of the Squash TM Result Publisher plugin from the Plugins tab of your project page, inside the Administration Tab :

../_images/plugin-complete-switch.png

Light results publication

By choosing the “Light” results publication, the following information is updated after the execution of a Squash TM test plan (iteration or test suite) :

  • ITPIs status update.

  • Automated suite status update.

  • The Allure type report containing all the results from the executed tests.

  • The various ITPIs execution reports are accessible from the Automated Suites tab of the iteration or test suite :

../_images/automated-suite-tab.png

Note

All the results from the automated suite are compiled in an Allure type report, available in the list of reports as a .tar archive.

However, in version 1.0.0.alpha2, the Robot Framework test results can’t be included in this report. If the automated suite contains only Robot Framework tests, the archive will be generated with an empty report.

For more information on the means to exploit and customize the Allure report, please refer to the Allure documentation.

This, however, doesn’t happen :

  • Creation of a new execution for each executed ITPI.


Full results publication

By choosing the “Full” results publication, the following information is updated after the execution of a Squash TM test plan (iteration or test suite) :

  • ITPIs status update.

  • Creation of a new execution for each executed ITPI.

  • Automated suite status update.

  • The Allure type report containing all the results from the executed tests.

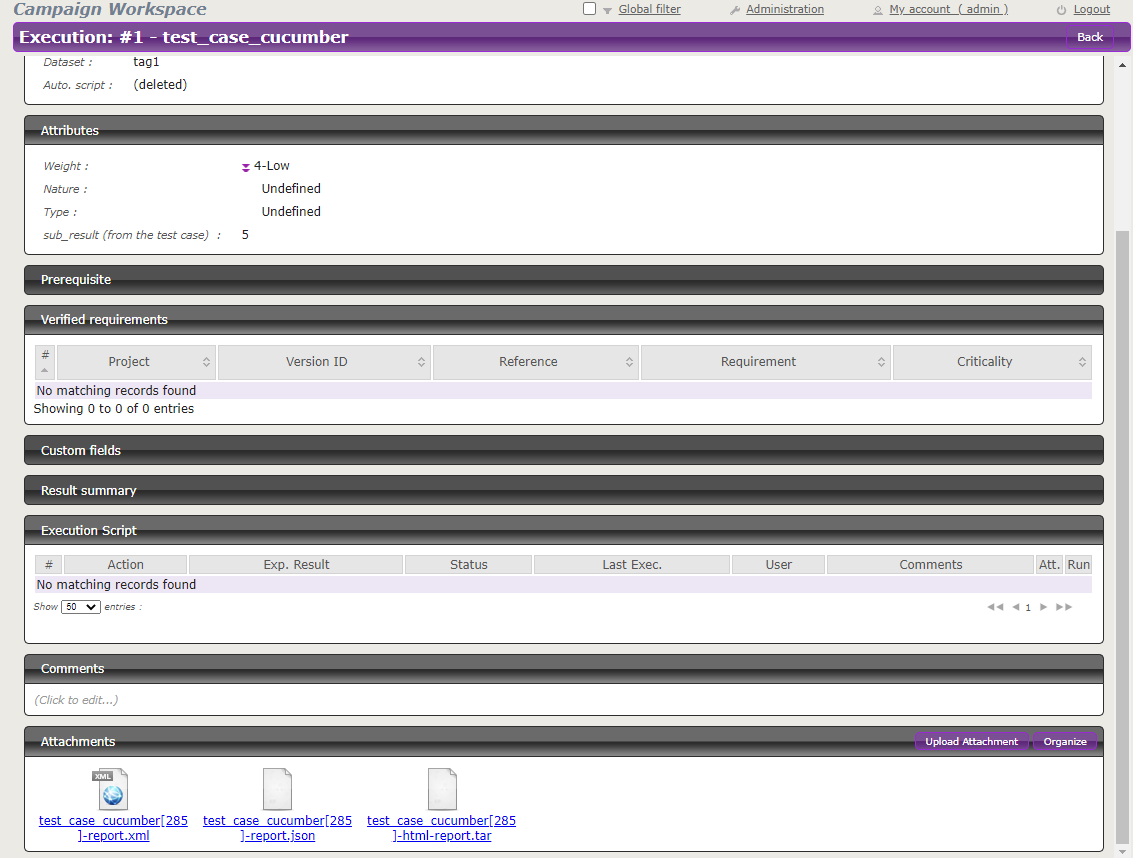

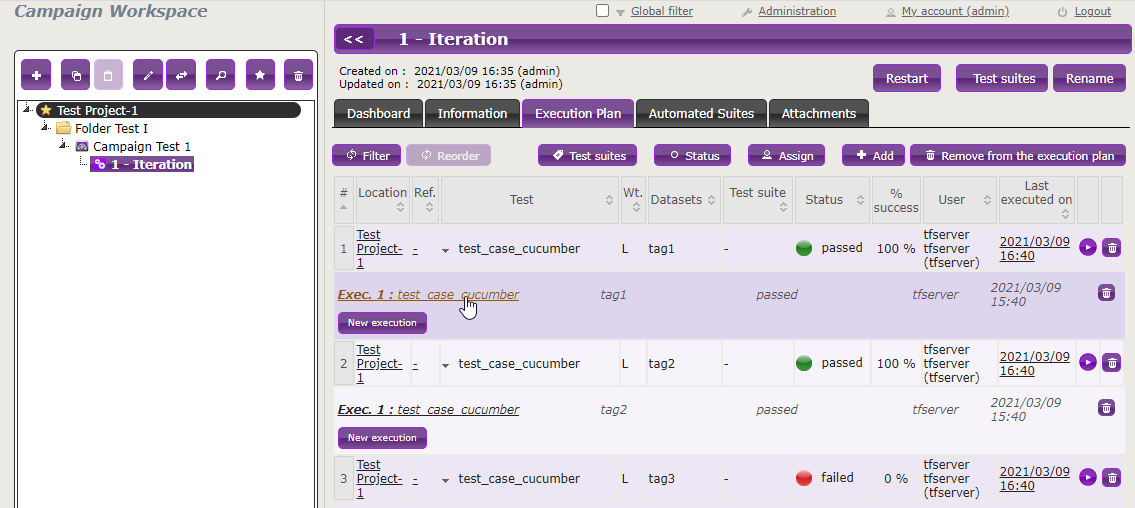

  • The execution reports of the various executions can be accessed from the Automated Suites tab of the iteration or test suite, or from the execution page (the reports are present in the attached files) :

../_images/iteration-execution-tab.png
../_images/iteration-execution-detail.png

Note

All the results from the automated suite are compiled in an Allure type report, available in the list of reports as a .tar archive.

However, in version 1.0.0.alpha2, the Robot Framework test results can’t be included in this report. If the automated suite contains only Robot Framework tests, the archive will be generated with an empty report.

For more information on the means to exploit and customize the Allure report, please refer to the Allure documentation.
